定义 DEFINITION
扁平漆包铜线是指形状为矩形的漆包铜线,由宽度值与厚度值组成, 规格描述为:
导体厚度(mm)x导体宽度(mm)或导体宽度(mm)x导体厚度(mm)
特性及优势 CHARACTERISTICS AND ADVANTAGES
漆包铜扁平线特性
1、槽满率高,生产体积更小、重量更轻的电子电机产 品不再受线圈尺寸的限制。
2、单位元面积导体密度增大,小尺寸大电流产品可以 实现。
3、散热性能、电磁效应优于漆包圆铜线。
超越普通漆包铜扁平线的蓉胜扁线产品
1、厚度:最小导体厚度达到0.09mm。
2、宽度与厚度比例更大:宽厚比最大达到1:15。
3、采用自主创新的工艺和特殊的生产流程,使生产的 小型漆包铜扁线性能更加优良,耐热等级达到220°C。

产品简介
具体请见以下列表,“O”代表具备此项性能:“X”代表不具备此项性能

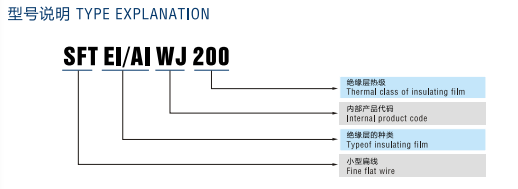

产品型号
product code |
名称
name |
耐热等级
thermal class |
直焊性
solderable |
自粘性
self bonding |
生产范围
production range |
宽度(mm) |
厚度(mm) |
宽厚比 |
SFT-AIWJ |
聚酰胺酰亚胺漆包扁平线 |
220°C |
X |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-EI/AIWJ |
聚脂亚胺复合聚酰胺酰亚胺漆包扁平线 |
220°C |
X |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-EI/AIWJ |
聚脂亚胺复合聚酰胺酰亚胺漆包扁平线 |
200°C |
X |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UEWJ |
直焊性聚氨酯漆包扁平线 |
180°C |
0 |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-EIWJ |
聚酯亚胺漆包扁平线 |
180°C |
X |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-SEIWJ |
直焊性聚脂亚胺漆包扁平线 |
180°C |
0 |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UEWJ |
直焊性聚氨酯漆包扁平线 |
155°C |
0 |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UEWJ |
直焊性聚氨酯漆包扁平线 |
130°C |
0 |
X |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-EI/SBWJ |
自粘性聚脂亚胺漆包扁平线 |
180°C |
X |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SF-SEI/SBWJ |
自粘直焊性聚脂亚胺漆包扁平线 |
180°C |
0 |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-EI/AI/SBWJ |
自粘性聚脂亚胺复合聚酰胺酰亚胺漆包扁平线 |
220°C |
X |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-AI/SBWJ |
自粘性聚酰胺酰亚胺漆包扁平线 |
220°C |
X |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UE/SBWJ |
自粘直焊性聚氨酯漆包扁平线 |
180°C |
0 |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UE/SBWJ |
自粘直焊性聚氨酯漆包扁平线 |
155°C |
0 |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
SFT-UE/SBWJ |
自粘直焊性聚氨酯漆包扁平线 |
130°C |
0 |
0 |
0.155-7.5 |
0.02-1.8 |
1.25 |
品种与规格范围
名称
Name
|
220级聚酰胺酰亚胺
精密小型漆包铜扁平线
Polyamideimide fine rectangular enameled copper wire of class 220
|
220级聚脂亚胺-聚酰胺酰亚
胺复合精密小型漆包铜扁平线
Polyesterimide/polyamideimide fine rectangular enameled copper wire of class 220
|
型号
Model
|
SFT-AIWJ |
SFT-EI/AIWJ |
导体厚度宽度比
Conductor ratio of thick to width
|
1:1.5~1:15 |
1:1.5~1:15 |
导体厚度范围
Conductor's wide size availability (mm)
|
0.09~1.20 |
0.09~1.20 |
耐热等级
Heat-resistant degree
|
220 |
220 |
特性
Character
|
耐热冲、耐寒、耐辐射、软 化击穿温度高、优良的机械 性能、化学及电性能好
Heat shock, Cool and radiant resistance, High cut-though temperature, Excellent mechanical performance, Excellent chemistry and electric capability
|
耐热冲、耐寒、耐辐射、软 化击穿温度高、机械强度高、 化学及电性能好
Heat shock, Cool and radiant resistance, High cut-though temperature, High mechanical intension, Excellent chemistry and electric capability
|
标准
Standards
|
SFT-AIWJ可按照下列 标准生产:MW36-C SFT-AIWJ can be manufactured to the following standards: MW 36-C |
SFT-EI/AIWJ可按照下列 标准生产:MW 36-C SFT-EIAIWJ can be manufactured to the following standards: MW 36-C |
名称
Name
|
220级聚酰胺酰亚胺
精密小型漆包铜扁平线
Polyamideimide fine rectangular enameled copper wire of class 220
|
220级聚脂亚胺-聚酰胺酰亚
胺复合精密小型漆包铜扁平线
Polyesterimide/polyamideimide fine rectangular enameled copper wire of class 220
|
型号
Model
|
SFT-AIWJ |
SFT-EI/AIWJ |
导体厚度宽度比
Conductor ratio of thick to width
|
1:1.5~1:15 |
1:1.5~1:15 |
导体厚度范围
Conductor's wide size availability (mm)
|
0.09~1.20 |
0.09~1.20 |
耐热等级
Heat-resistant degree
|
220 |
220 |
特性
Character
|
耐热冲、耐寒、耐辐射、软 化击穿温度高、优良的机械 性能、化学及电性能好
Heat shock, Cool and radiant resistance, High cut-though temperature, Excellent mechanical performance, Excellent chemistry and electric capability
|
耐热冲、耐寒、耐辐射、软 化击穿温度高、机械强度高、 化学及电性能好
Heat shock, Cool and radiant resistance, High cut-though temperature, High mechanical intension, Excellent chemistry and electric capability
|
标准
Standards
|
SFT-AIWJ可按照下列 标准生产:MW36-C SFT-AIWJ can be manufactured to the following standards: MW 36-C |
SFT-EI/AIWJ可按照下列 标准生产:MW 36-C SFT-EIAIWJ can be manufactured to the following standards: MW 36-C |
